CABLES
Standard & Specialty
CAMERA EXTENSION CABLES
Standard Camera Extension Cables all are 4-pin Aviation and have a waterproof rubber boot to cover the connection.
All Verity Camera systems use either the "S"/"J" (Female/Female) or "C" (Female/Male). These cables are not exclusive to the "J" & "C" systems.
S & J-Series Camera Extension Cables
4-Pin female/female
CB011: 1 meter ( 3’) 4-pin camera cable
CB006: 5 meter (15’) 4-pin camera cable
CB012: 10 meter (33’) 4-pin camera cable
CB018: 15 meter (49’) 4-pin camera cable
CB021: 20 meter (65’) 4-pin camera cable
(*special order/custom sizes available)
C-Series Camera Extension Cables
4-Pin male/female
CB001: 1 meter ( 3’) 4-pin camera cable
CB005: 5 meter (15’) 4-pin camera cable
CB010: 10 meter (33’) 4-pin camera cable
CB015: 15 meter (49’) 4-pin camera cable
CB020: 20 meter (65’) 4-pin camera cable
(*special order/custom sizes available)
REPLACEMENT POWER HARNESSES
CB400B for SMW7B, MK07B 1 camera input
CB400C for SM05C, MK05C 2 camera inputs
CB400FE for SM7F, MK7F, MK7FM 3 camera inputs
CB400J for SM05J, SM07J, MK05J, MK07J 3 camera inputs
CB400M7 for SMM07, MMK07 2 camera inputs
CB400QS for SMQ7S, MKQ7S 4 camera inputs
CB400S for all SM07S, SMW7S, MK07S 3 camera inputs
oops!
ADAPTER CABLES
argh!
CB125
Our exclusive 5-pin male to 4-pin female conversion cable. We are the only company that makes this with the 5th pin mirror/un-mirror activation jumper. It allows you to trigger the mirror function on older 5-pin systems.
CB127
Our exclusive 4-pin male to 5-pin female conversion cable.
CB117
Y- Splitter Cable1 male 4-pin / 2 female 4-pin

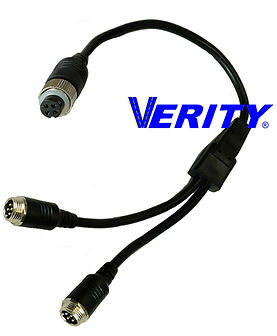

CB118
Y- Splitter Cable1 female 4-pin / 2 male 4-pin
CB119: 6" (15cm) 4-pin male to 4-pin male conversion cable
CB124: 6" 4-pin female to 4-pin female conversion cable
SPECIALTY CABLES
CB007: 13-pin Male to Female, 5m Camera Cable (monitor extension for Semis)
CB101: BNC (video) RCA (audio) Barrel (power) to 4-pin camera cable 1m.
CB201: BNC to 4-pin camera cable 20m.
Often used to tie into fire/rescue head units
CB111: 4-pin female camera cable/RCA male
CB116: 4-pin male to 2 RCA female camera converter cable with power.
CB121: (1) set of Male & Female 5.5 x 2.1mm DC Power Socket Jack Plug Connector, 12V EF
New Part CB080 Samsara Tie-in cable
Most add-on tracking programs that connect to a rear vision system require the cameras to be powered during ignition hot. Verity systems are designed to meet the new requirements of a low-parasitic draw on electrical systems (electric vehicles). So unless a camera is engaged, it is not putting a load on the battery system.
%20with%20words.jpg)
CBP7M (male) Cable Pull (shown below)
Attaches to 4-pin Female cables.
Our tool made in our facility. Because Verity installs our systems on our test fleet (Midwest Foodbank), we made this cable to make installs quicker and protect the cable ends.
CBP7F (female) Cable Pull also available for connecting to 4-pin Male.
Trailer Kits For RV and Semis
CBK202
CBC202
Coil section only
CBS202
Socket with bracket.
3-piece, 5-post, 1-camera, 5m coil cable, 3' 4-pin Male on both sides.
Full kit includes brackets and hardware.
CBK203
3-piece, 5-post, 3-camera, 5m coil cable, 3' 4-pin Male on both sides. Full kit includes brackets and hardware.
CBC202
Coil section only
CBS203
Socket only with bracket.
Semi Trailer Coil Cable Kit
CBK204
3-piece, 7-post, 1-camera, blue 5m coil cable, 3' 4-pin Male on both sides.
Full kit includes brackets and hardware.
CBC204
Coil section only
CBS204
Socket with bracket.
Does Verity make specialty cables to meet my OEM needs?
