NEW PRODUCT!

SM27QRF - 7" Quad DVR Monitor
with a Dual Lens Camera

Now Made in Malaysia
Ramping up production

The Verity SM27QRF system features a 7-inch AHD/CBVS hybrid monitor with a built-in Mobile Digital Video Recorder (MDVR). This monitor is compatible with both CBVS and AHD cameras and can support up to four cameras using its built-in multiplexer.

MDVR records and stores video footage on a separate 256 GB SD card (sold separately). The recorded video is saved in the standard .avi format, ensuring compatibility with most common video players.

Additionally, the system is equipped with a dual-lens camera that offers a wide view behind the truck. The monitor automatically switches between the lenses, providing a top view for regular driving and a lower view for reversing. The SM27QRF also includes a standard "U" bracket and one 65-foot camera cable.

New C500 Dual 2 in1 Camera
The top camera shows behind the truck when driving down the road.
The bottom camera shows wide details of what you're backing into.

The Monitor's Built-in MDVR records it all.

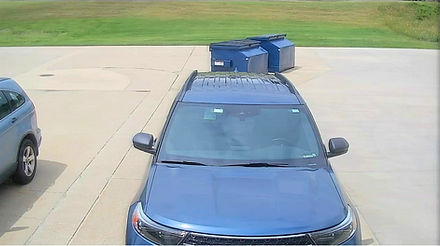

Example of the C500 driving view at 109"

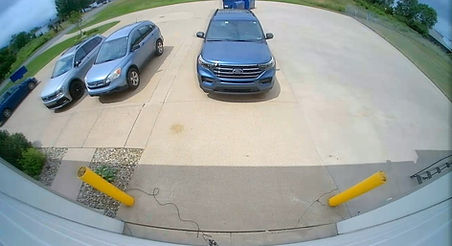

Example of the C500 reversing view 109"

C500 Test Door 2.jpg
Screenshot 2025-07-18 113019.jpg

MONITOR SPECIFICATIONS

(Monitor part #MK7QRF) ​

  • DVR built-in to the monitor (supports up to 256 GB SD)

  • SD card door with security screw

  • Screen size: 7-inch digital screen (16:9)

  • High Resolution: 1024 × 600 Pixel (RGB)

  • Video Format: CVBS / AHD (1080P)

  • System: NTSC Auto Select

  • Contrast:  800:1

  • Brightness: 450 cd/m2

  • Power supply: DC 12V

  • Operation temperature: -20C° ~ +60C°

  • Storage temperature: -25C° ~ +70°C

  • Monitor view angle: Horz. L (85) R (85) Vert. UP (85) DOWN (85)

  • 4 camera inputs with shrink tube labeled trigger wires

  • Speaker built into the monitor

  • Auto blue screen if there is no signal on the activated channel.

Verity Monitor MK7QRF .jpg
Verity Monitor MK7QRF side.jpg

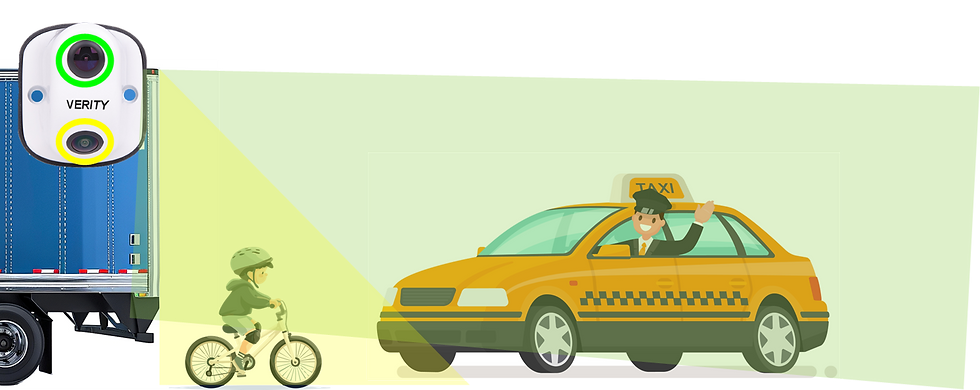

​Exclusive! C500 Dual Lens Camera:

When driving down the road,
the upper lens displays a 134° horizontal view and a 67 ° vertical view.

When backing,
the lower lens focuses on the rear of the truck, providing a

153° horizontal view and a 90° vertical view. This view is key to seeing what

you are turning into while backing up.

2 level camera range.png

CAMERA SPECIFICATIONS Part # C500

  • Image Sensor  1/3 CMOS

  • Rubber backing gasket

  • Uses a heavy-duty 4-pin locking min DIN connectors at thur-wall

  • Format  NTSC  AHD/1080P

  • Effective Pixels    1920(H) x 1080(V)

  • Resolution: 2 Million Pixels

  • Minimum Illumination:  0.01 Lux

  • Interlace Scanning System

  • AGC    AUTO

  • White balance    AUTO

  • Power Supply    DC 12V

  • Upper Lens: 2.5mm 134°(H) (V) 150°(D)

  • Low Lens: 1.86mm 153°(H) 90°(V)172°(D)

  • Current consumption: Single channel:85±10mA

  • Waterproof rating    IP68

  • Operating Temperature    -20°C - 70°C

  • Storage Temperature    -30°C - 80°C

CAMERA SPECIFICATIONS Part # C500

  • Image Sensor  1/3 CMOS

  • Format  NTSC  AHD/1080P

  • Effective Pixels    1920(H) x 1080(V)

  • Sensing Area    2.8μm(H) x 2.8μm(V)

  • Resolution: 2 Million Pixels

  • Minimum Illumination:  0.01 Lux

  • Interlace Scanning System

  • AGC    AUTO

  • White balance    AUTO

  • Power Supply    DC 12V

  • Upper Lens: 2.5mm 134°(H) 67°(V) 150°(D)

  • Low Lens: 1.86mm 153°(H) 90°(V)172°(D)

  • Waterproof rating    IP68

  • Operating Temperature    -20℃-70℃

  • Storage Temperature    -30℃-80℃

​​

C500 Camera.jpg
C500 Side Camera.jpg
C500 Side line.jpg
C500 Tempalte.jpg

Hole mounting template included with camera

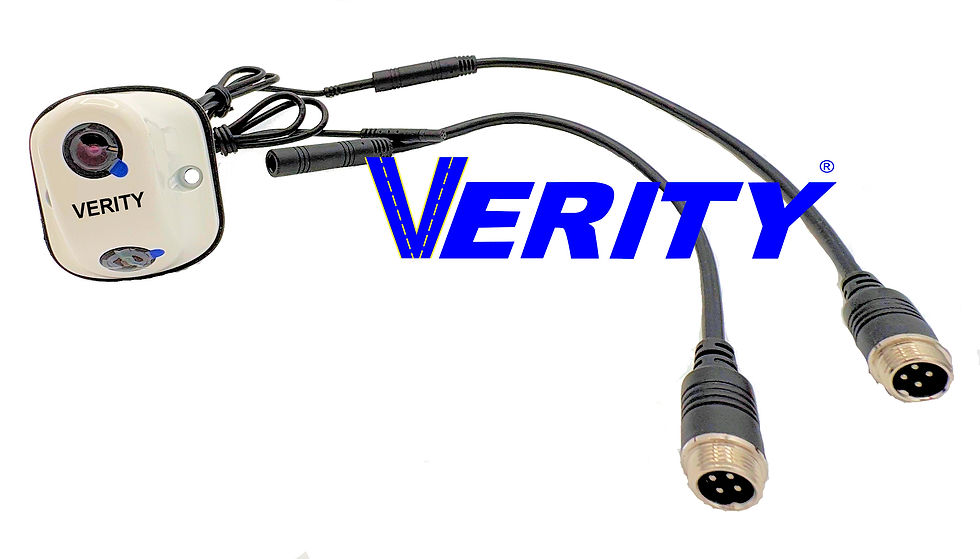

AHD mini din BMW waterproof connector.logo.jpg

Part # CBF32YY
One AHD cable handles both cameras on the C500 dual lens camera.

Because there are two camera cables coming out of the camera, we have added 2 AHD waterproof mini din (BMW) connectors on the cable to reduce the hole size needed and speed up installation.

dual female cable with logo number 2 copy.png

The C500 camera
undergoing heat
testing at the factory.



SM27RF Heat Test.png
