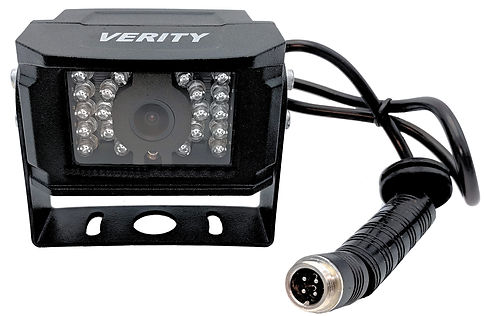

C001J REAR CAMERA
The C001J is a Backup Camera featuring 700 TV lines, and Aluminum Shell Housing with 20 Ultra Bright IR LED's for night vision. The C001J camera is waterproof with an IP69 Rating and 10G Vibration. This camera is a proven product that withstands the test of time.
%20.jpg)
CAMERA SPECIFICATIONS
(Camera Part #C001J)
-
Horizontal Resolution: 700 TV Lines
-
TV System: NTSC
-
Image Type: 1/3 Inch Color CMOS SONY(or equivalent)
-
Effective Pixel: 510 x 492
-
Illumination: 0 Lux (built-in 20 high-output IR LEDs for night vision)
-
Aluminum Housing
-
Waterproof: IP69
-
Power Supply: DC 12V (power from the monitor)
-
Shockproof: 10G
-
Operating Temperature: -30°~70°C
-
Built-in Microphone
-
Viewing Angle: 120° Horizontal
FLYER
Click to view/open
Example Image of C001J View
Example Image of C001J View

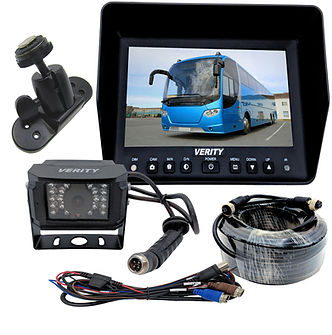

SM07J - Complete Camera System
Our C001J camera can also be purchased as a complete rear vision system. The SM07J comes with the C001J camera, our MK07J monitor kit, ADD22H monitor mount, and a 20m camera cable with 4-pin female connections that connect to the monitor and cameras 4-pin male ends. We have adapter cables if you need to convert 5-pin to 4-pin.
