NEW INNOVATION!

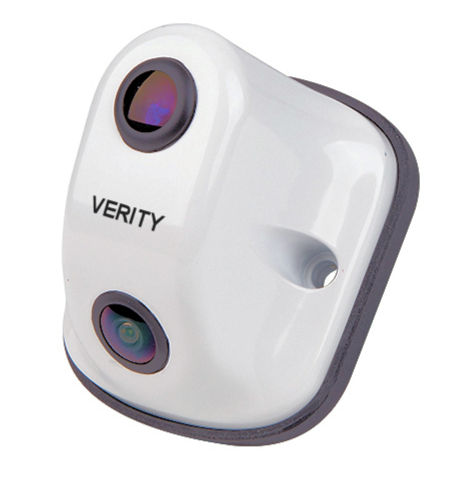

Part # C500 Dual Lens Camera
Exclusive! C500 Dual Lens Camera:

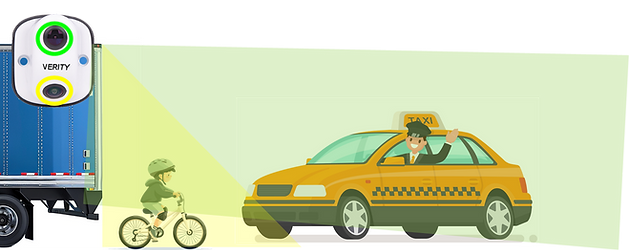

This dual-lens camera enables drivers to see further behind the vehicle through the top lens and provides a close-up view through the second lens. This camera automatically switches to the lower lens when the truck is put into reverse.
When driving down the road,
the upper lens displays a 134° horizontal view and a 67° vertical view.
When backing,
the lower lens focuses on the rear of the truck, providing a
153° horizontal view and a 90° vertical view. This view is key to seeing what
you are turning into while backing up.
Example of the C500 driving view at 109"
Example of the C500 reversing view 109"
CAMERA SPECIFICATIONS Part # C500 - AHD Dual Lens Camera
-
TV System: NTSC
-
Video Format: AHD/1080P
-
Effective Pixels: 1920(H)×1080(V)
-
Resolution: 2 Million Pixels
-
Minimum Illumination: 0.01 Lux
-
Microphone: None
-
Video Output: 1.0 Vp-p/75 Ohm
-
Interlace Scanning System
-
AGC: AUTO
-
White balance: AUTO
-
Electronic Shutter: AUTO
-
Backlight Compensation: AUTO
-
Power Supply: DC 12V
-
High Lens: 2.5mm 134°(H) 67°(V) 150°（D）
-
Low Lens: 1.86mm 153°(H) 90°(V)172°（D）
-
Waterproof rating: IP68
-
Operating Temperature: -20℃-70℃,RH 95% MAX
-
Storage Temperature: -30℃-80℃,RH 95% MAX
Hole mounting template included with camera
Because there are two camera cables coming out of the camera, we have added 2 AHD waterproof mini din (BMW) connectors on the cable to reduce the hole size needed and speed up installation.
Part # CBF32YY
One AHD cable handles both cameras.
The C500 camera
undergoing heat
testing at the factory
